45E

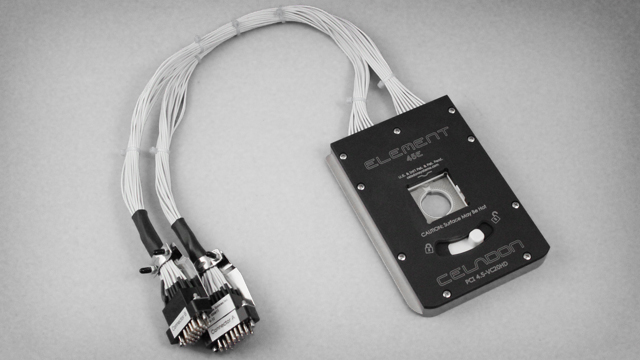

The Element Series 45E converts a VC20 probe card into an industry-standard 4.5″ probe card.


  • Quickly lock probe cards into place
  • Leave the 45E in the tester during card changes – minimize the risk of cable connect issues and save time
  • Effective operating temperature range from -65° to 200° C
  • Leakage as low as 5fA/V
  • Can be configured with up to 48 probes
  • Probes can be configured in either single or dual layer
  • Minimum pitch 50µm
  • Standard X/Y accuracy 10% pad size
  • Standard Z accuracy +/- 5 microns
